Gaelic football is described as a mixture of Australian rules football, soccer and rugby. It is played with a ball similar to a soccer ball, on what looks very much like a rugby pitch, yet it is played in a similar fashion to Australian rules.

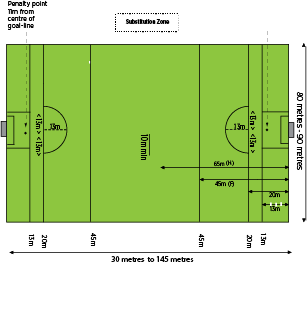

The field of play is between 130m and 145m long and 80m to 90m wide. The dimensions may be reduced for underage games or games of less than 15 a side.
All lines are marked in white. The lines on the playing field are 90mm ± 13mm. Lines are marked across the field parallel to the endline at distances from each endline of 13m, 20m and 45m. The intersection of these lines and of the endlines with the side lines are marked with flags or cones. If flags are used, they set back at least one metre from the sideline and placed on an angle.The midline of the field is marked parallel to the endlines and is 10m long. Boundary lines are part of the field of play. Two rectangles are formed in front of the scoring space as follows:
A semi‑circular arc of 13m radius, centred on the midpoint of the 20m line is marked outside of each 20m line. A point is marked 11m from the centre of the goal line, where a penalty kick is taken.
An area of the sideline extending 5m on either side of the centre line is marked as the Interchange/Substitution Zone and all players coming off/going on to the field of play in acts of interchange/substitution/temporary substitution go through this point.
The scoring space is at the centre of each endline. Each is formed by two goalposts, circular in cross section, and are not less than 7m high and are 6.5m apart.The inside edge of the endline is at a tangent to the front edge of the base of the goal posts.A cross is fixed to the goalposts 2.5m above the ground. The crossbar has a rectangular or circular cross section.If rectangular, the depth is 140mm + 10mm and the width not less than 50mm. When circular, it has a uniform diameter of 125mm + 5mm.Goal nets are securely fixed to the back of the crossbar and the back of each goal post.
Gaelic Athletic Association (Established 1884) Official Guide - Part 2. Central Council of Association, Croke Park, Dublin 3. April 2016.https://learning.gaa.ie/sites/default/files/2016%20Official%20Guide%20-%20Part%202.pdf
The information in this guide is general in nature and cannot be relied upon as professional advice concerning the design of, or marking out for, sporting facilities and playing areas. No assurance is given as to the accuracy of any information contained in this guide and readers should not rely on its accuracy. Readers should obtain their own independent and professional advice in relation to their proposed sporting activity.
